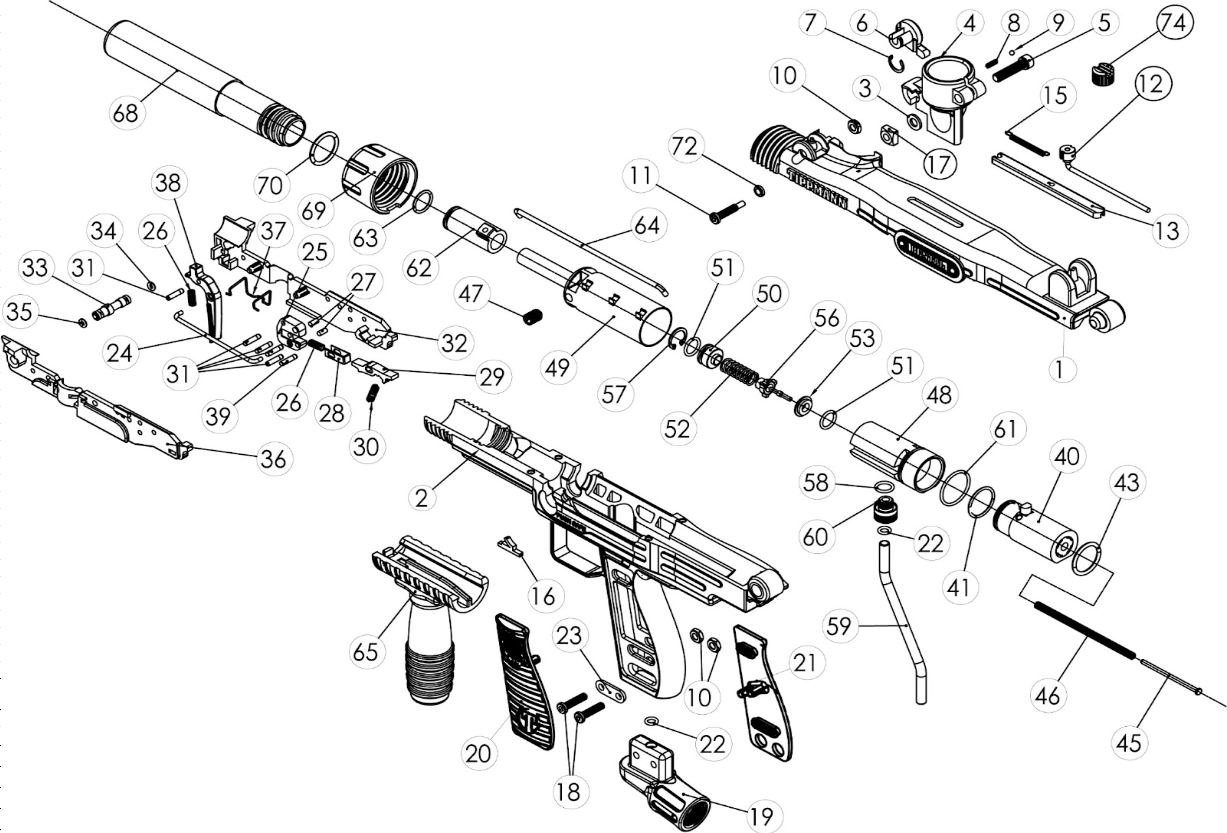

Tippmann FT 12 Onderdelen Lijst
Tippmann FT 12 Onderdelen
Op zoek naar een onderdeel die niet op de website staat? Neem contact met ons op!
| Item | Tippmann | GoPaintball | Productnaam |
| 1 | TA45001 | - | Top Receiver |
| 2 | TA45002 | - | Bottom Receiver |
| 3 | 98-45 | - | Washer, M6, Flat Black |
| 4 | TA45003 | - | Feed Tube |
| 5 | PL-42C | - | Screw, ¼-20x1” SHCS |
| 6 | TA45004 | - | Feed Tube Lock |
| 7 | TA45005 | - | Feed Tube C-clip |
| 8 | TA45041 | - | Feed Elbow Spring |
| 9 | TA45040 | - | Ball, Steel |
| 10 | 9-PA | - | Hex Nut, 10-32, Black |
| 11 | TA45044 | - | Screw, 10-32, LHSHCS |
| 12 | TA45006 | - | Pull Stick Nut |
| 13 | TA45007 | - | Cover Plate |
| 15 | TA45009 | - | Tensile Spring |
| 16 | FA-18 |
- | Ball Latch |
| 17 | PL-42D |
- | Nut, ¼-20, Square, Black |
| 18 | TA45011 |
- | ASA Screws |
| 19 | TA45012 |
- | Air Supply Adapter (ASA) |
| 20 | TA45013 |
- | Grip Cover, Left |
| 21 | TA45014 | - | Grip Cover, Right |
| 22 | TA40017 | - | Gas Line O-Ring |
| 23 | TA45015 | - | Plastic ASA Washer |
| 24 | TA45016 | - | Trigger Link |
| 25 | TA40011 | - | Trigger Adapter |
| 26 | 98-20 | - | Trigger Spring |
| 27 | 98-19 | - | Return Slide Dowel Pin |
| 28 | 98-18 | - | Trigger Return Slide |
| 29 | 02-35 | - | Sear |
| 30 | TA02036 | - | Sear Spring |
| 31 | TA45043 | - | Trigger Pin |
| 32 | TA45017 | - | Trigger Box, Right |
| 33 | TA45018 | - | Safety Pin |
| 34 | FA-07 | - | Safety O-Ring, Black |
| 35 | 98-55 | - | Safety O-Ring, Red |
| 36 | TA45019 | - | Trigger Box, Left |
| 37 | TA45020 | - | Trigger Box Spring |
| 38 | TA45021 | - | Trigger |
| 39 | TA45042 | - | Sear Pin |
| 40 | TA45022 | - | Rear Bolt |
| 41 | 98-12A | - | Valve/Rear Bolt O-Ring |
| 43 | TA01014 | - | Buffer O-Ring |
| 45 | CA-15 | - | Guide Pin |
| 46 | CA-14 | - | Drive Spring |
| 47 | 02-22 | - | Velocity Screw |
| 48 | TA45024 | - | Valve Body |
| 49 | TA45025 | - | Power Tube |
| 50 | TA45026 | - | Valve Plug |
| 51 | TA45027 | - | Valve Body O-Ring, |
| 52 | TA40022 | - | Valve Spring |
| 53 | TA45028 | - | Front Valve Seat |
| 56 | 98-PL | - | Valve Stem |
| 57 | TA45030 | - | C-clip |
| 58 | SL2-25 | - | Gas Line Joint O-Ring |
| 59 | TA45032 | - | Gas Line |
| 60 | TA45033 | - | Gas Line Joint |
| 61 | TA45034 | - | Valve Body O-Ring (outside) |
| 62 | 02-17 | - | Front Bolt |
| 63 | SL2-4 | - | Front Bolt O-Ring |
| 64 | TA01016 | - | Linkage Arm |
| 65 | TA45035 | - | Front Grip |
| 68 | TA45038 | - | Barrel |
| 69 | TA45039 | - | Barrel Nut |
| 70 | 98-40 | - | Barrel O-Ring |
| 72 | TA45049 | - | Plastic Washer |
| 74 | TA45048 | - | Cocking Knob |
Tippmann FT 12 Assemblies
| Item | Tippmann | GoPaintball | Productnaam |
| 75 | TA45100 | - | Feed Neck Assy |
| 76 | TA45101 | - | Trigger Box Complete Assy |
| 77 | TA45102 | - | Valve Assy |
| 78 | TA45103 | - | Cocking Handle Assy |
| 79 | TA45104 | - | Safety Assy w/ o-rings |
